FLEXSCAN 32/64PR light weight and portable digital ultrasound phased array NDT testing machine

FOB Reference Price:Get Latest Price
US $28,000-35,000 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Doppler
Model Number:
FLEXSCAN 32/64PR
Power:
Electronic
Usage:
Flaw detection
Pannel resolution:
800*600
sampling rate:
100MHZ
Focal law:
1024
independent transmit channel:
128
main color:
blue
Multi channel scan:
8 group A scan,tofd+PA
PRF:
20KHZ
Dimension:
296*209*89
Phase array probe:
OEM available
Brand:
Doppler
Supply Ability
Supply Ability:
100 Unit/Units per Quarter
Packaging & Delivery
Packaging Details
industry suitcase, package with manuals,sd card, usb disk, software, battery, adaptor inside.
Port
Guangzhou
Lead Time :
Shipped in 30 days after payment

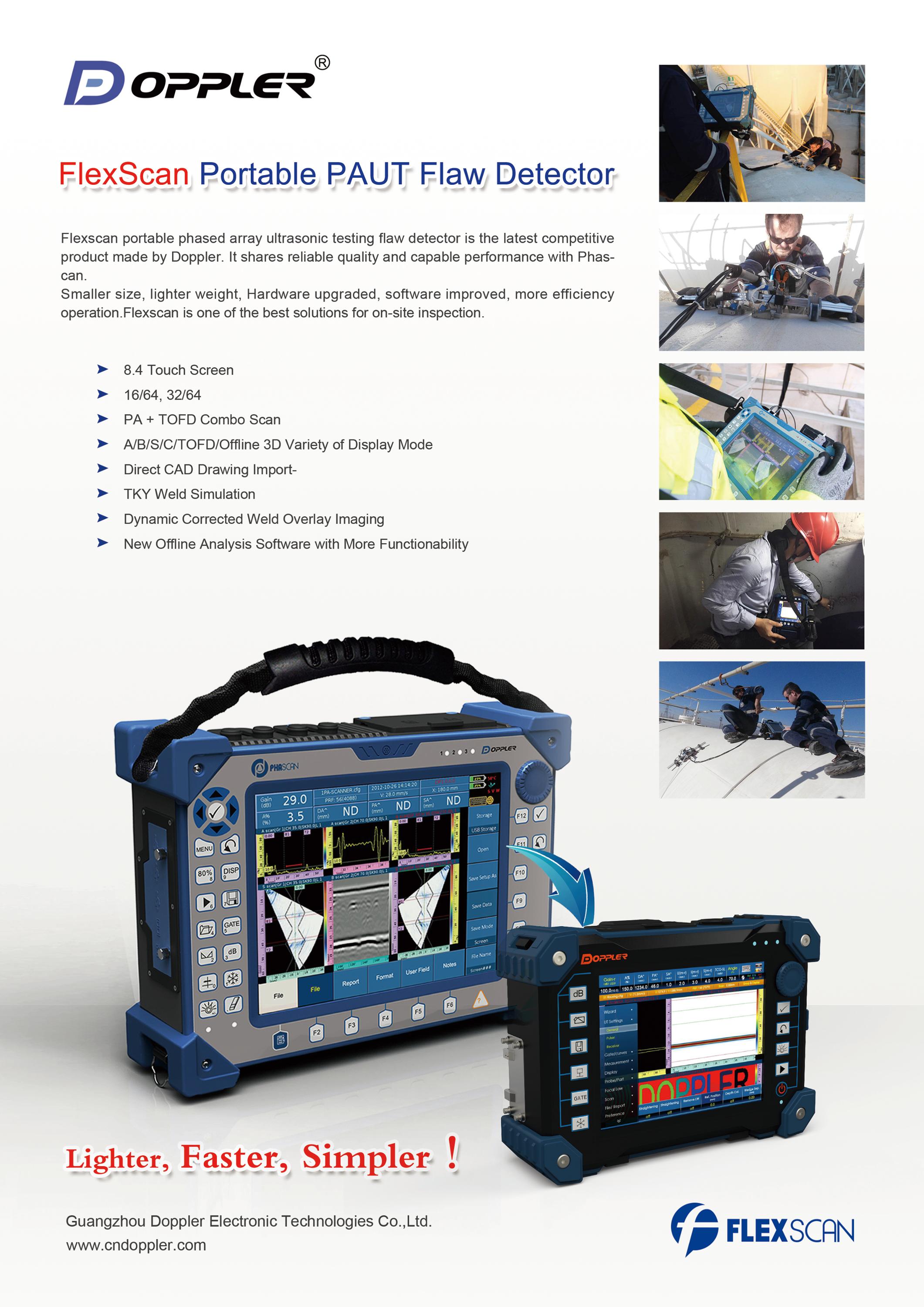

Multi channel phased array flaw detector--FLEXCAN 32/64

World cutting-edge PA ultrasonic flaw detector----FLEXCAN

Lighter! Faster! Simpler!

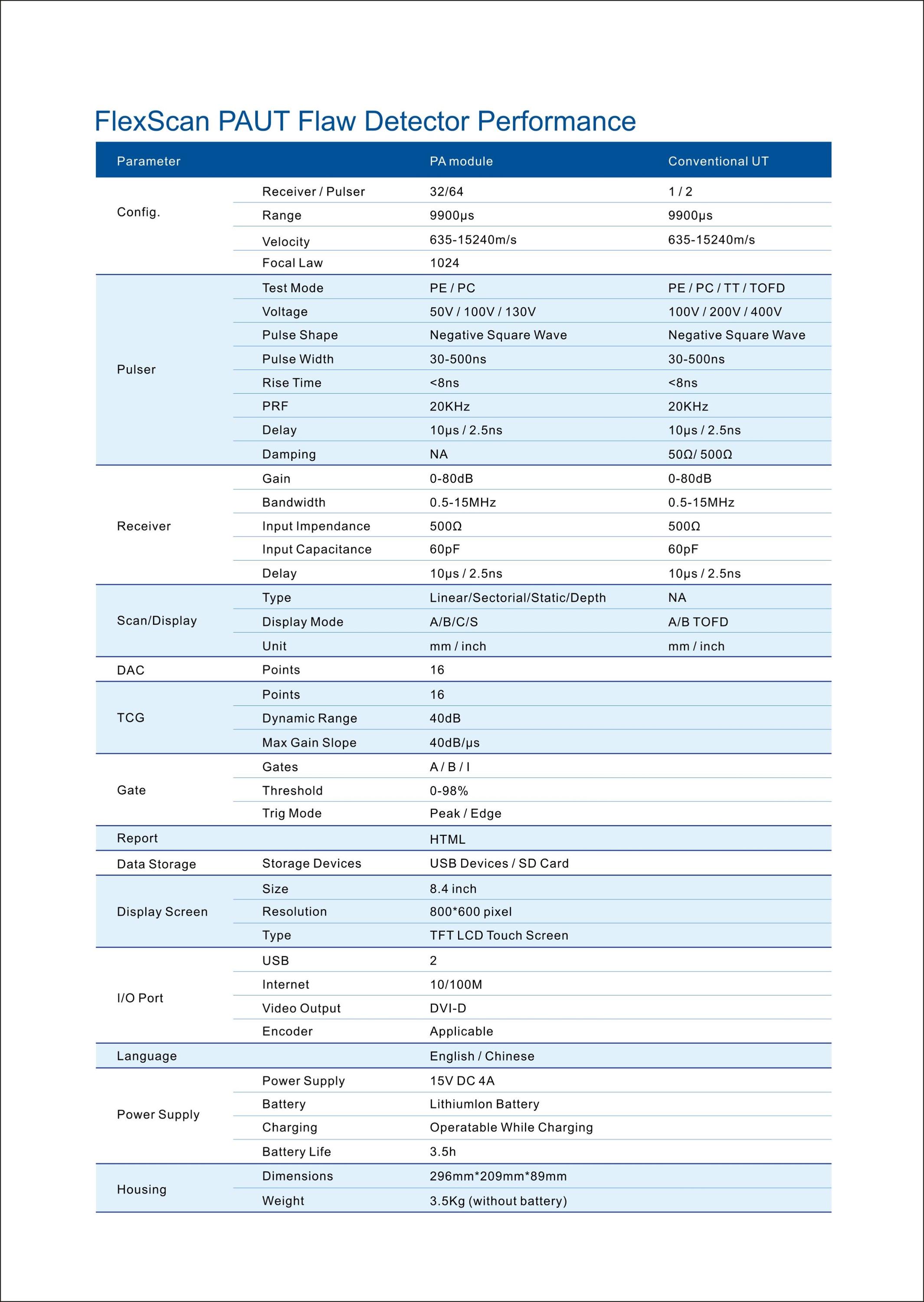

Main performance of Phascan phase array flaw detector:

1:32/64 channels for phased array inspection, with independent channels for high-performance TOFD and conventional ultrasonic function.
2:Negative square-wave emission,with resolution up to 2.5ns
3:PRF up to 20KHz
4:With bandwidth of 0.5-15MHz,it is compatible with most phased array probes

5:1024 focal law

6:Multi channel scanning on the machine, support PA and TOFD scan

7.A/B/S/C/TOFD/offline 3D variety og display mode.

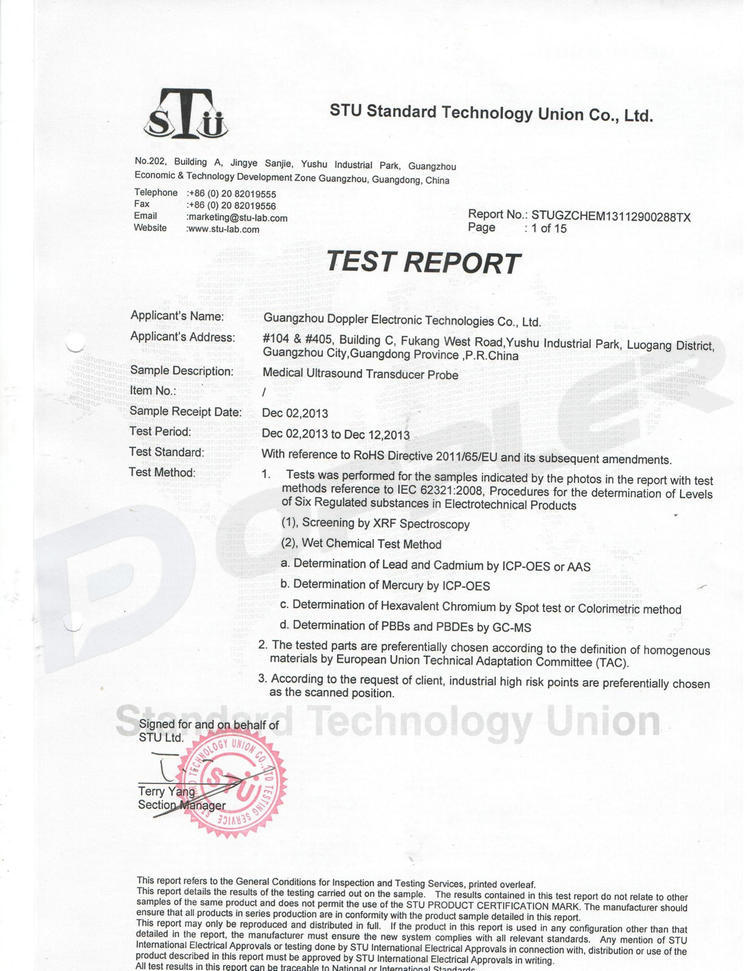

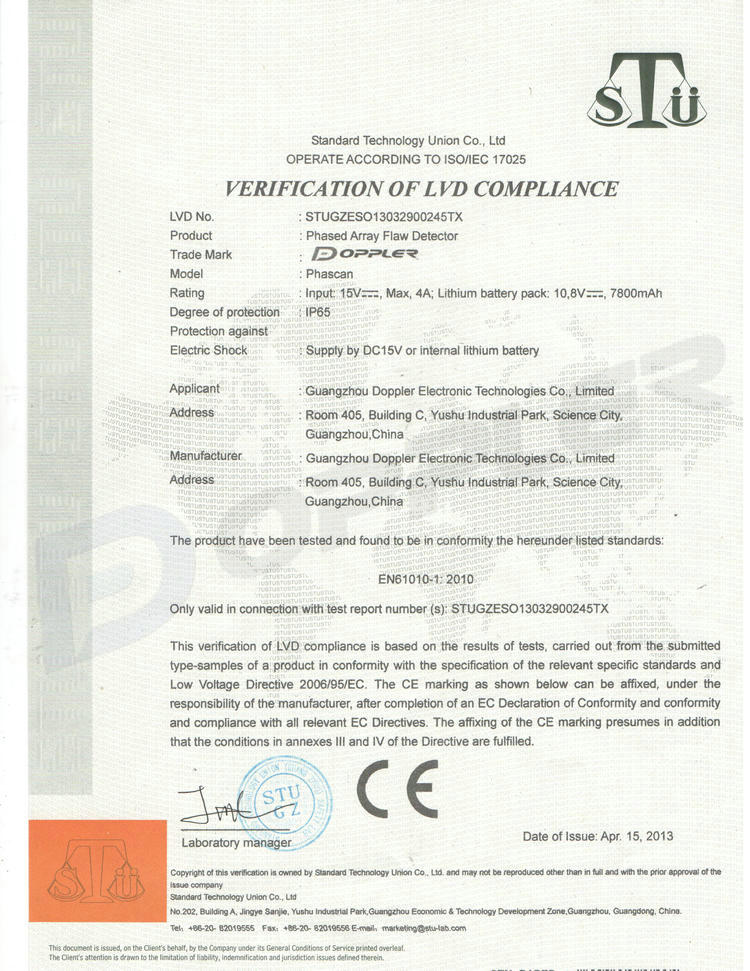

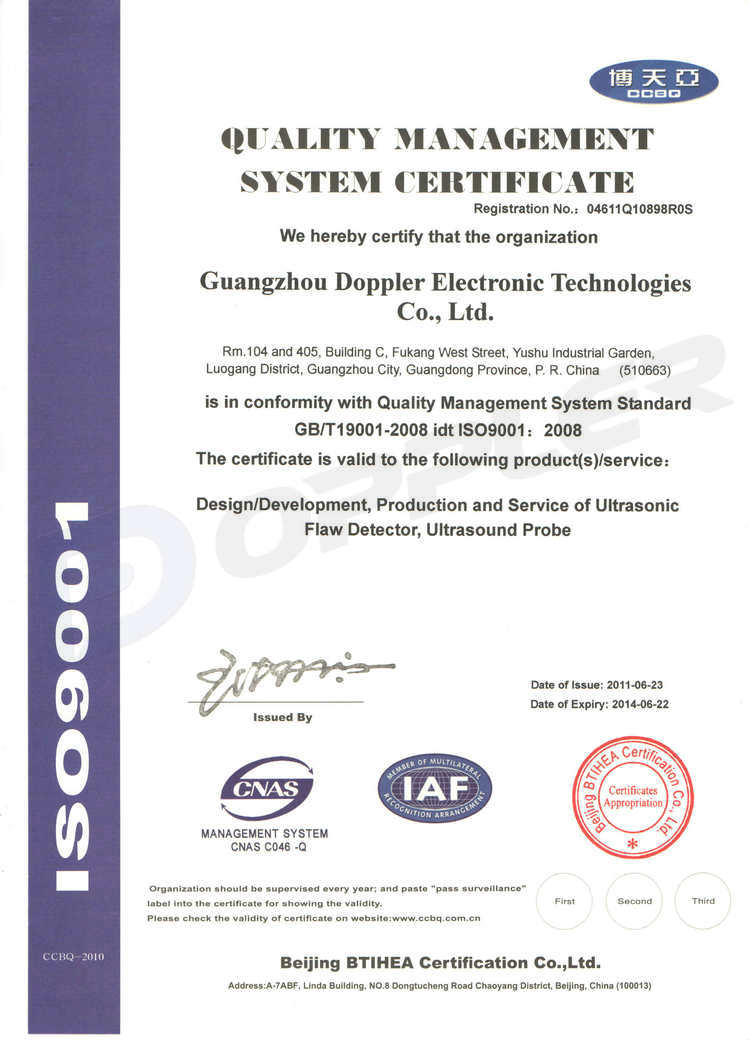

Quality certificate:

 _ ROHS _phascan  CE  _




exibition03.jpgfactory 01 750800.jpg

Choose Doppler choose professional!

For more information just contact us!
