Portable PAUT flaw detector NDE NDT inspection equipment

FOB Reference Price:Get Latest Price
US $42,500-52,500 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Doppler
Model Number:
Phascan
Power:
Electronic
Usage:
Flaw detection
Pannel resolution:
800*600
sampling rate:
100MHZ
Focal law:
1024
independent transmit channel:
128
main color:
blue
Multi channel scan:
8 group A scan,tofd+PA
PRF:
20KHZ
Dimension:
325*230*130
Phase array probe:
OEM available
Brand:
Doppler
Supply Ability
Supply Ability:
100 Unit/Units per Quarter
Packaging & Delivery
Packaging Details
industry suitcase, package with manuals,sd card, usb disk, software, battery, adaptor inside.
Port
Guangzhou
Lead Time :
2-3 weeks after we confirm order and payment from customer
Video Description

Doppler-your One-stop UT/PAUT solution provider~











Doppler PHASCAN phased array flaw detector is a high-level phased array inspection instrument developed by Doppler with superior performance and general-purpose.It focus o positioning in pratical applicability and advanced technology,and is suitable for machinery,transportation,oil and gas,aerospace and other fiedls.Based on the actual inspection requirement,the development combines existing development and manufacturing of advanced probe technology with hardware,software and field application experience,aiming at provideing users with the best solution.



phascan-

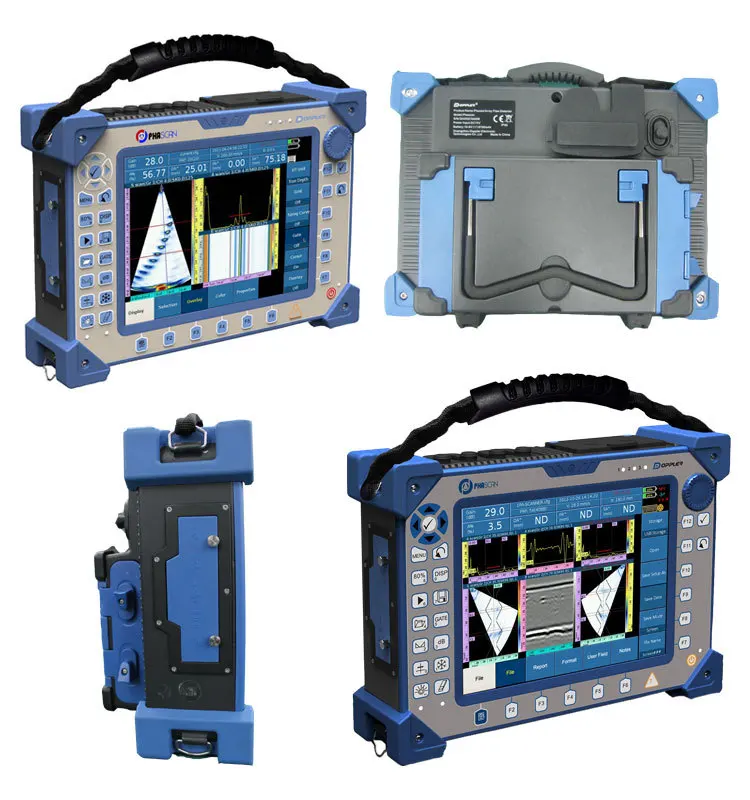

DOPPLER  Advanced NDT PAUT phase array ultrasonic flaw detector

World cutting-edge PA ultrasonic flaw detector----PHASCAN

Main performance of Phascan phased array flaw detector:



1:16/64,32/64,32/128,32/128PR receiver/pulser channels for phased array inspection, with independent channels for high-performance TOFD and conventional ultrasonic function.
2:Negative square-wave emission,with resolution up to 2.5ns
3:PRF up to 20KHz
4:With bandwidth of 0.5-15MHz,it is compatible with most phased array probes

5:1024 focal law

6:Multi channel scanning on the machine, support 2 group PA scan,1 group of tofd scan at the same time.





Parameter table of DOPPLER  Advanced NDT PAUT phase array ultrasonic flaw detector

  PA moduleConventional UT
Config.receiver/pulser16/64,32/64,32/1282/4
velocity635-15240m/s635-15240m/s
Pulsertest modePE/PCPE/PC/TT/TOFD
voltage50V/100V50V/100V/200V
pulse shapenegative square wave negative square wave
pulse width30-500ns30-500ns
rise time <8ns<8ns
PRF20KHz20KHz
delay10μs/2.5ns10μs/2.5ns
dampingNA50Ω/ 500Ω
Receivergain0-80dB0-80dB
bandwidth0.5-15MHz0.5-15MHz
input impendance200Ω200Ω
input capacitance60pF 60pF
delay10μs/2.5ns10μs/2.5ns







Application of Doppler PHASCAN  Advanced NDT PAUT phase array ultrasonic flaw detector

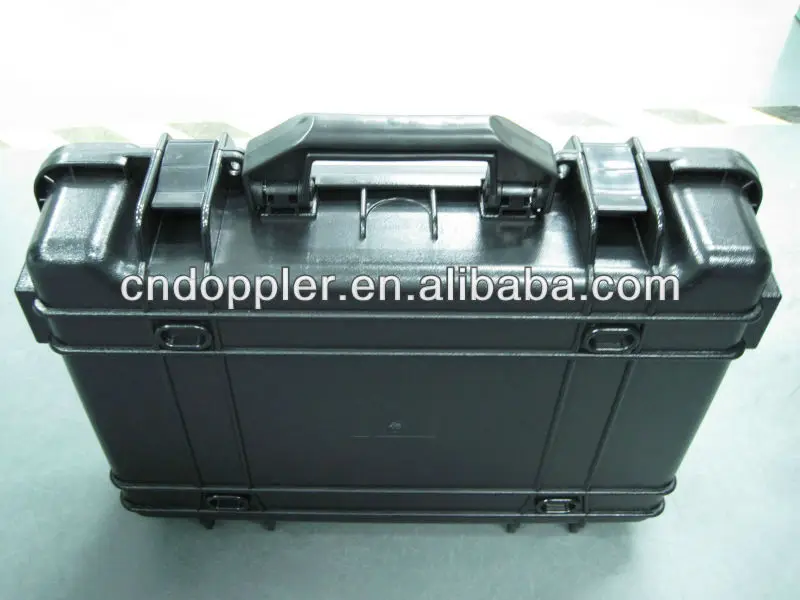

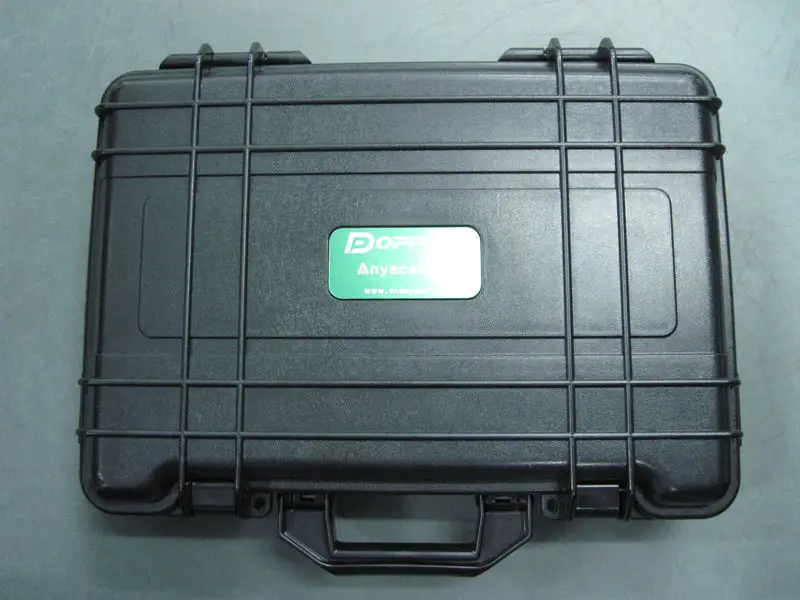

Packing suitcase of DOPPLER NDT Advanced NDT PAUT phase array ultrasonic flaw detector

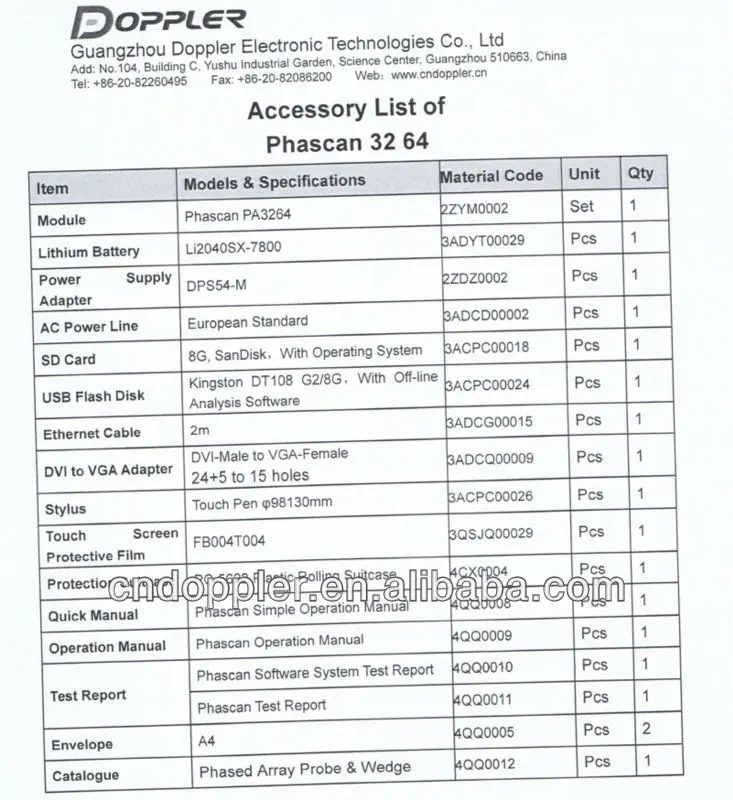

Packing List









Optional accessories:

 PA probe

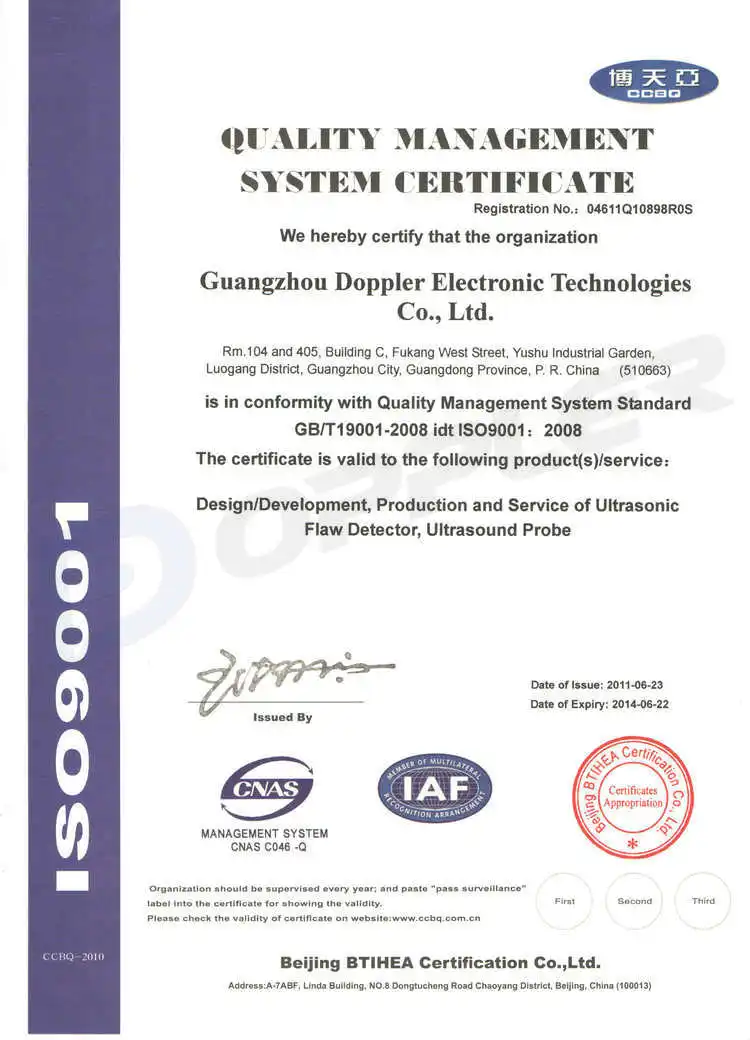

Quality certificate

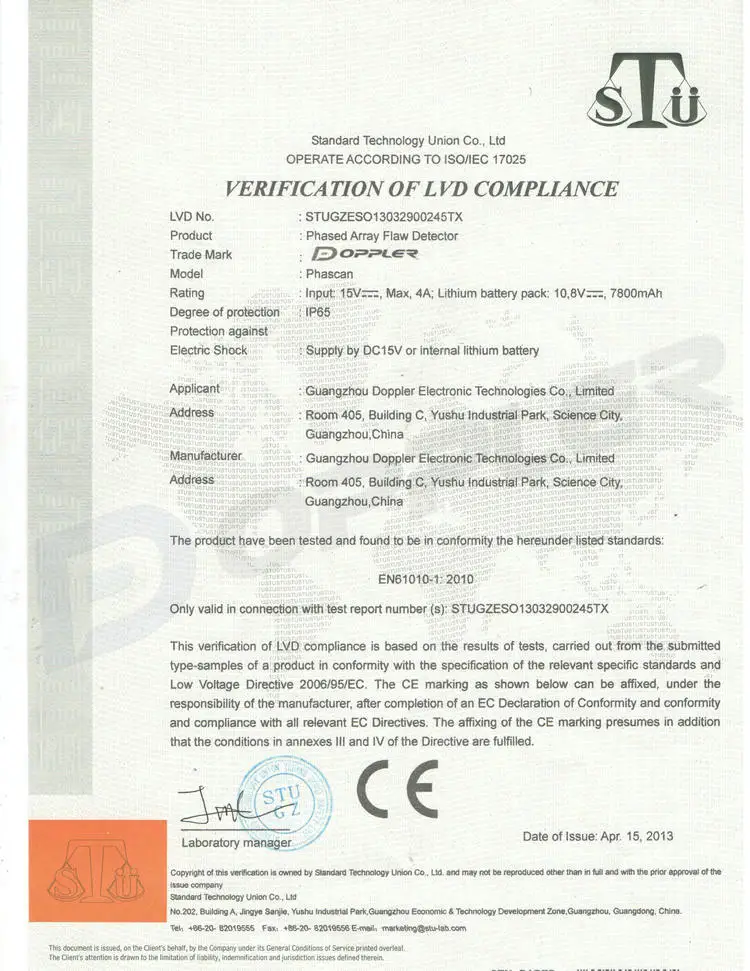

 _phascan  CE  _





exibition03



Choose Doppler choose professional!

For more information just contact us!
