Guangzhou manufacturer ultrasonic crack test complete set

FOB Reference Price:Get Latest Price
US $4,000-4,500 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Doppler
Model Number:
Anyscan-30
Power:
Electronic
Usage:
Universal Testing Machine
Connection:
Lemo 01
DAC function:
yes
AVG function:
yes
Curve surface amend:
yes
Peak holding:
yes
Envelope function:
yes
Auto gain function:
yes
Illustrated for weld tes:
yes
Channel setting:
yes
Data storage:
yes
Supply Ability
Supply Ability:
200 Unit/Units per Month
Packaging & Delivery
Packaging Details
Protective suitcase
Port
Guangzhou
Lead Time :
7 working days

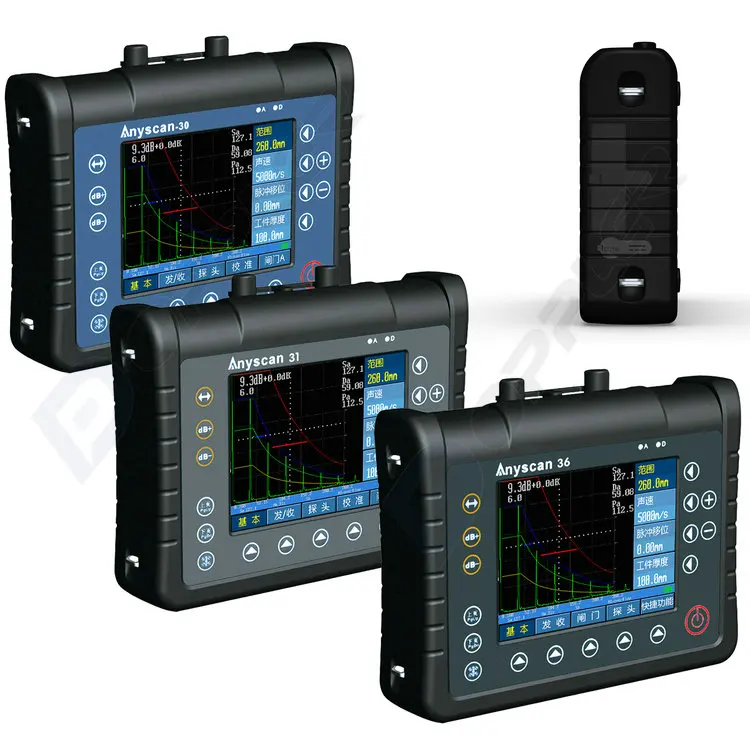

Characters of Anyscan digital ultrasonic flaw detector A30

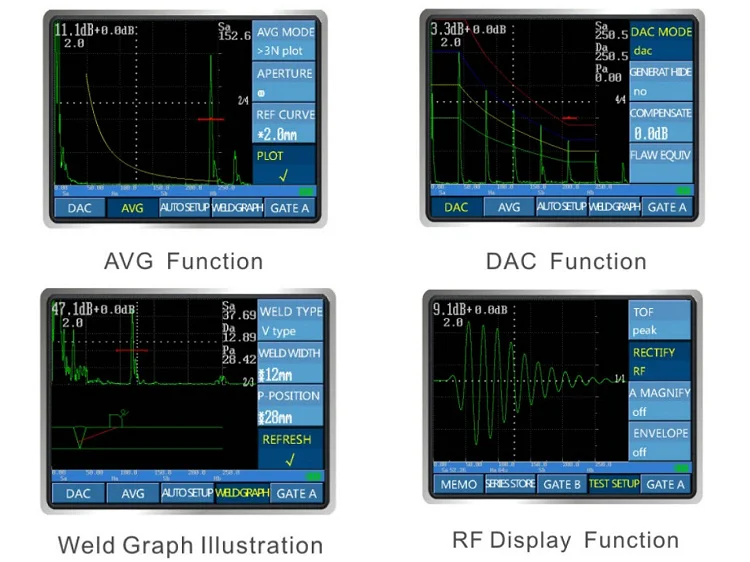

1:10 points of DAC curve function,auto-generated evaluation line, sizing line,rejection line.

2:Peak record function,curve surface amend function,AVG function.



3:envelope function:record the profile of the echo peak track.

4:Auto gain function:auto set the amplitude of selected echo to the desired value.



5:Illustrated function for the weld inspect.

6:Intellectual procedure for instrument calibration.



7:Easy access to channel setting and data saving:Easy to save and recall 30 groups of detection parameters and 470 groups of data result.

8:zoom function,zoom in/out the wave of display zone,fully use of the screen.

9:transmit wave of A30 is 400v spike wave,the frontier descending time is about 5ns.





Parameters of portable digital crack test complete set :



Horizontal Linearity Error≤0.1%
Vertical Linearity Error≤3%
Surplus Sensitivity≥62dB
Dynamic Range≥40dB
Electronic Noise Level≤20%
Far-field Resolution≥30dB
working ModeSingle-probe or Dual-probes
Transmit Pulse400V negative spikes
Operating Frequency Range0.5MHz~20MHz, frequency subsection option, match probes well
Detection Range0.5mm~9999mm ( steel; longitudinal wave), adjustable continuously, switchable steps
PRFrange≤125mm: 1KHz;
125mm<range≤1400mm: 250Hz;
1400mm<range≤9999mm: 40Hz
Sampling Rate400MHz hardware real-time sampling



Packing list standard crack test complete set:

ModuleAnyscan-30 (Lemo 01 interface)1
Lithium Battery10.8V = 5200 mAh1
Power Adapterdps-m-L1
AC Power LineEuropean Standard1
Probe CableLEMO 01-LEMO 01 (1.8m)1
Probe CableLEMO 01-LEMO 00 (1.8m)1

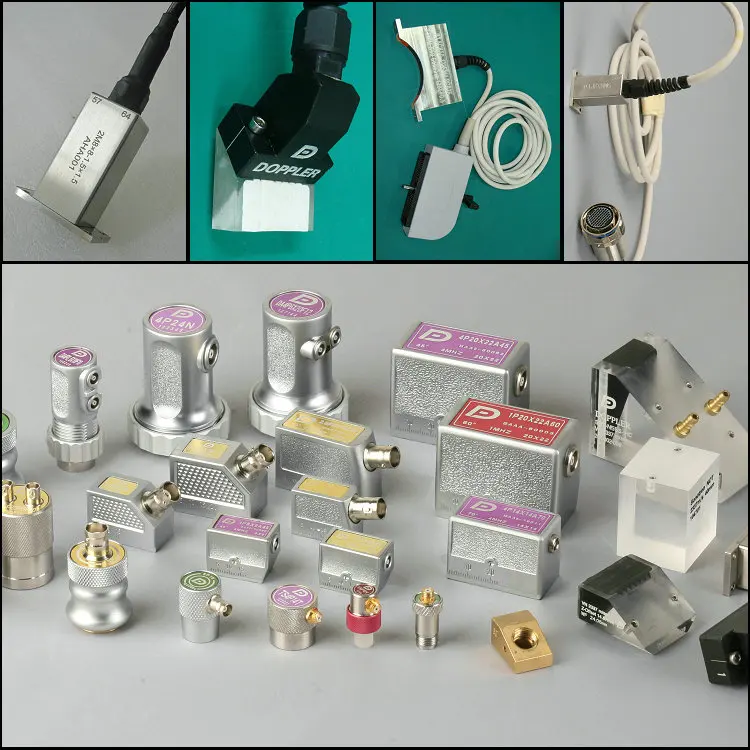

Straight Beam ProbeN4P10L-N-PF001-RC5-C-L-E1
Angle Beam ProbeA4P8*9A45-I-A005-RC5-C-L-E1
Angle Beam ProbeA4P8*9A60-I-A005-RC5-C-L-E1
Angle Beam ProbeA4P8*9A70-I-A005-RC5-C-L-E1
USB Cable1m1
USD Flash DiskPNY 2G including Off-line Analysis Software1
Host Handbag Anyscan-301
Small Carrying Case   FA001T009A1
ManualAnyscan-30 English1
Certificate of QualityAnyscan 301
CatalogueConventional Probe Catalogue1
Warranty Card Anyscan 301



Pictures:





Choose Doppler choose professional!

For more information just contact us!
