Multi channel phase array flaw detector-PHASCAN 32/128 PR

FOB Reference Price:Get Latest Price
US $45,000-50,000 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
PHASCAN, PHASCAN
Model Number:
Phascan 32/128PR
Power:
Electronic
Usage:
flaw detection
Model:
PHASCAN 32/128PR
Main color:
Blue
Sampling rate:
100MHz
Focal type:
Depth,Beam path,Projection,focal,auto
PRF:
20KHz
Resolution:
800*600
Battery:
Rechargeable Li-ion battery
Dimension:
325*230*130
Net weight:
4.5Kg
Supply Ability
Supply Ability:
10 Unit/Units per Month
Packaging & Delivery
Packaging Details
Industry suitcase with manuals, sd card, test report, usb disk, off-line software inside.
Port
Guangzhou
Lead Time :
2 weeks after we confirm order and payment from customer
Multi channel phased array flaw detector--PHASCAN 32/128PR

World cutting-edge PA ultrasonic flaw detector----PHASCAN

Main performance of Phascan phase array flaw detector:

1:32/128 pulser/receiver channels for phased array inspection, with independent channels for high-performance TOFD and conventional ultrasonic function.
2:Negative square-wave emission,with resolution up to 2.5ns
3:PRF up to 20KHz
4:With bandwidth of 0.5-15MHz,it is compatible with most phased array probes

5:1024 focal law

6:Multi channel scanning on the machine, support 2 group PA scan,1 group of tofd scan at the same tme.





Parameter table of Phascan phase array flaw detector:





PA module



Conventional UT



Config.

pulser/receiver

32/128

2/4

velocity

635-15240m/s

635-15240m/s

Pulser

test mode

PE/PC

PE/PC/TT/TOFD

voltage

50V/100V

50V/100V/200V

pulse shape

negative square wave

negative square wave

pulse width

30-500ns

30-500ns

rise time

<8ns

<8ns

PRF

20KHz

20KHz

delay

10μs/2.5ns

10μs/2.5ns

damping

NA

50Ω/ 500Ω

Receiver

gain

0-80dB

0-80dB

bandwidth

0.5-15MHz

0.5-15MHz

input impendance

200Ω

200Ω

input capacitance

60pF

60pF

delay

10μs/2.5ns

10μs/2.5ns

Data Acquisition

digital sampling

100M(10bit)

100M(10bit)

No. of data points

8192

8192

No.of focal law

1024

NA

focus type

depth/half path/projection/focal plane/auto

NA

rectify

FW/HW+/HW-/RF

FW/HW+/HW-/RF

synchronization

pulse/gate

pulse/gate

Scan/Display

type

linear/sectorial/static/depth

NA

display mode

A/B/C/S

A/B/TOFD

unit

mm,inch

mm,inch

DAC

points

16

16

TCG

points

16

16

Gate

gates

A/B/I

threshold

0-98%

trig mode

peak/edge

Report



HTML



Data Storage

Storage devices

USB devices/SD card

Display Screen

size

10.4 inch

Resolution

800*600pixel

type

TFT LCD touch screen

I/O Port

USB

3

video output

DVI/VGA compatible

encoder

applicable

Language



English/Chinese

Power Supply

batttery

Lithium Battery

charging

charging on the host while operating

Battery life

6h

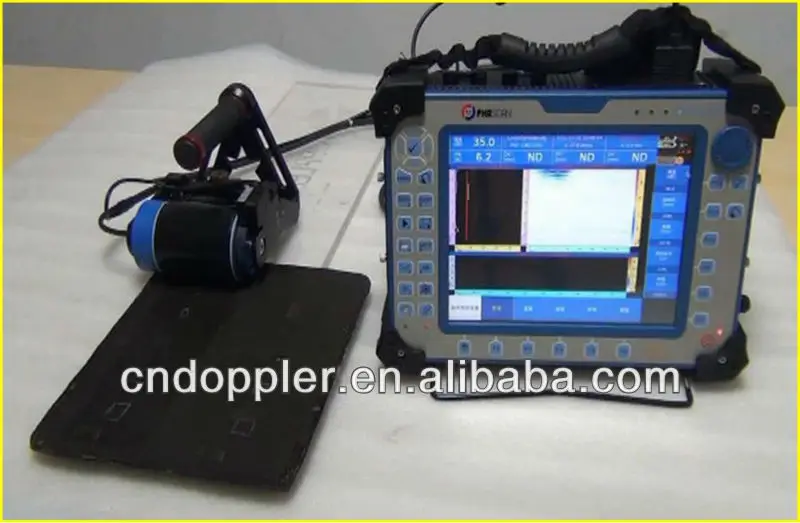

Recommend scanner frame+wheel probe+encode kit, see picture below:

scanner+wheel probe+encode+adaptor.JPG

 Picture of phase array flaw detector--PHASCAN 32/128PR

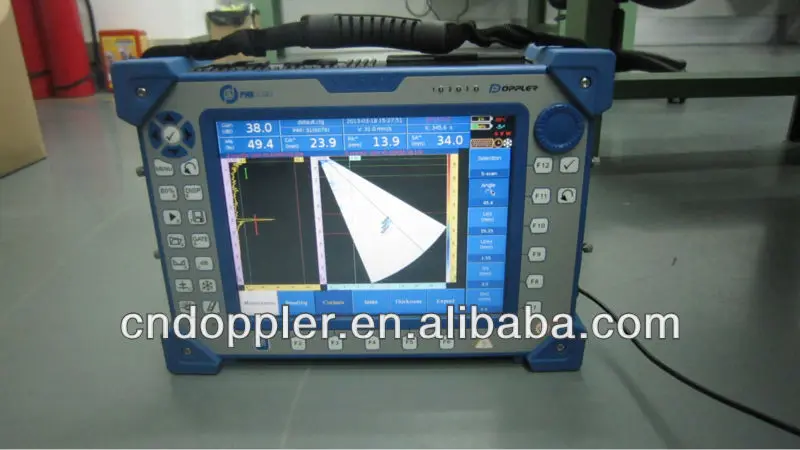

Front pannel:

front pannel.jpg

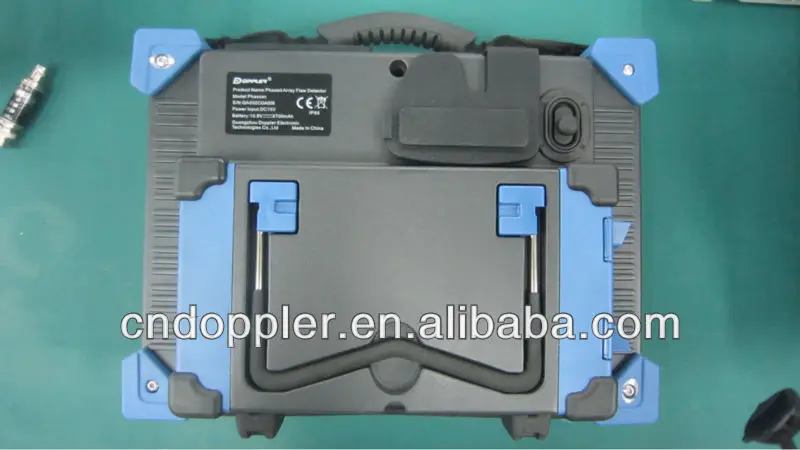

Backside of phase array flaw detector:

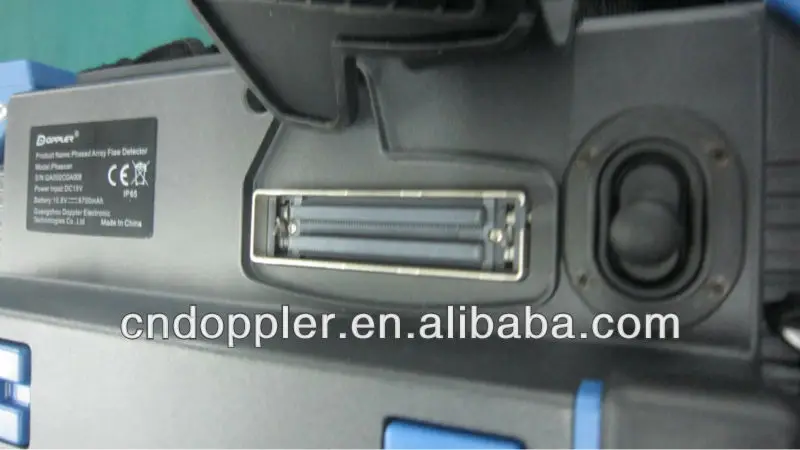

Phase array probe connection place:

PA probe connection.jpg

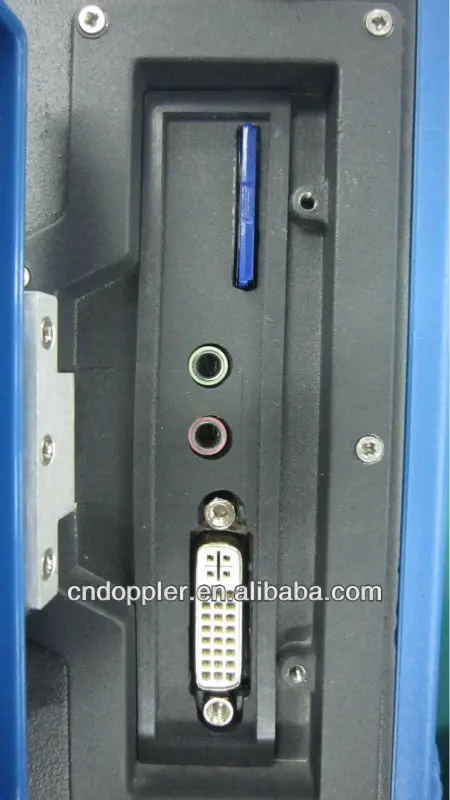

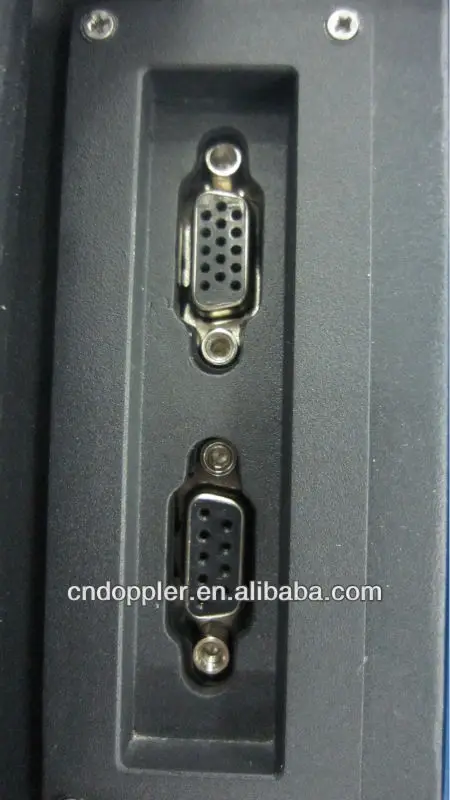

Side picture of phase array flaw detector:

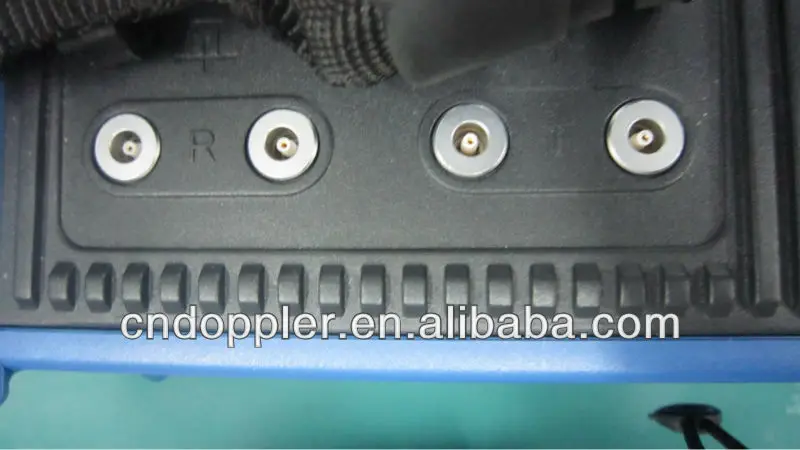

Joint of conventional probes:

conventional joint.jpg

Logo of Phascan:




Quality certificate:



ISO9001 Certification.jpgEurope EN12668.jpg
